• Dana full-floating rear axle
• Rear wheel drive
• 600 CCA 12 volt battery
• 100 amp alternator
• 15,000# GVWR (5000 front/11,000 rear), springs (5000 front/11,000 rear), axles (5000 front/11,000 rear)
• I-beam front suspension w/leaf springs

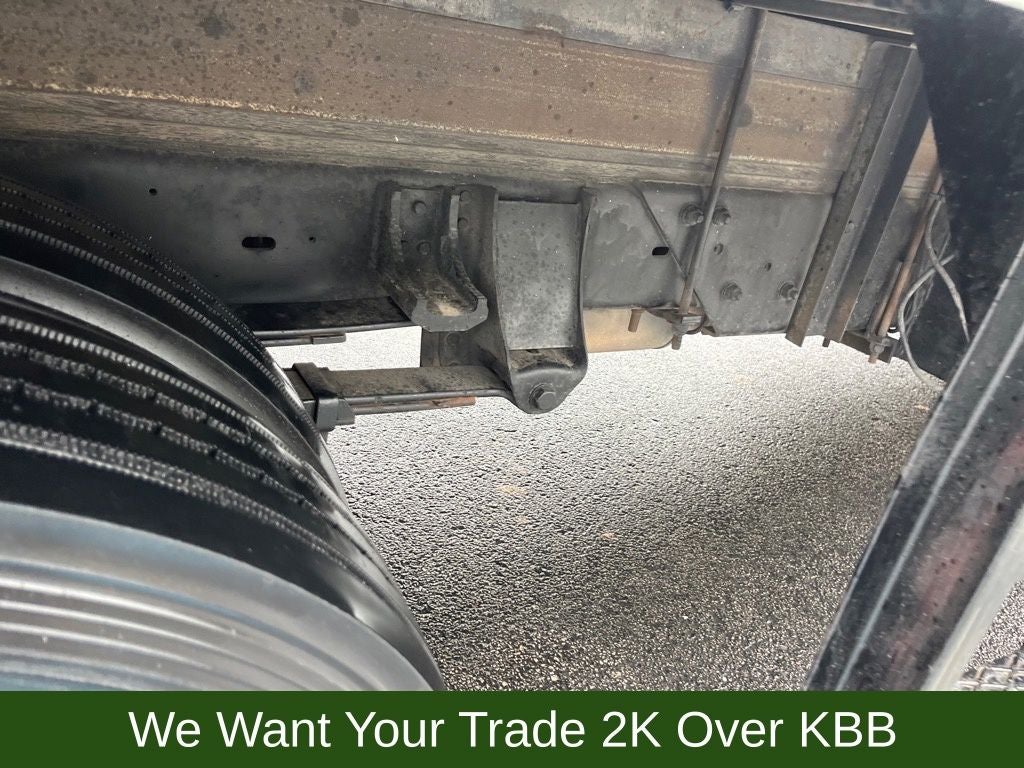

• Leaf spring rear suspension
• Front stabilizer bar

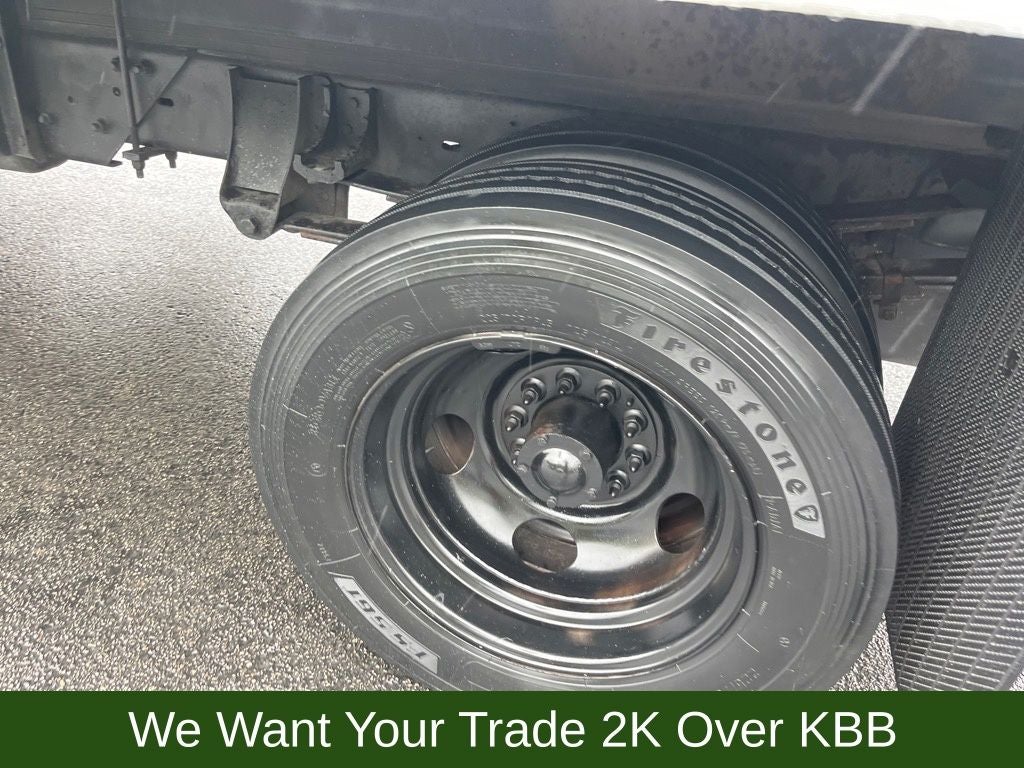

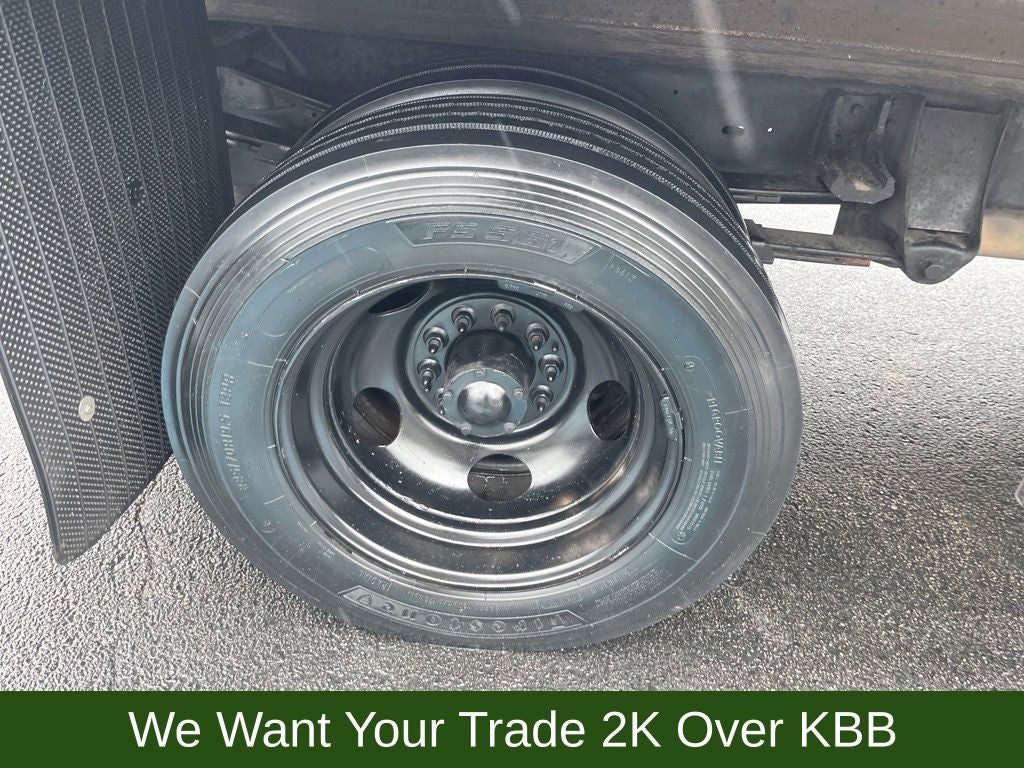

• Dual rear wheels

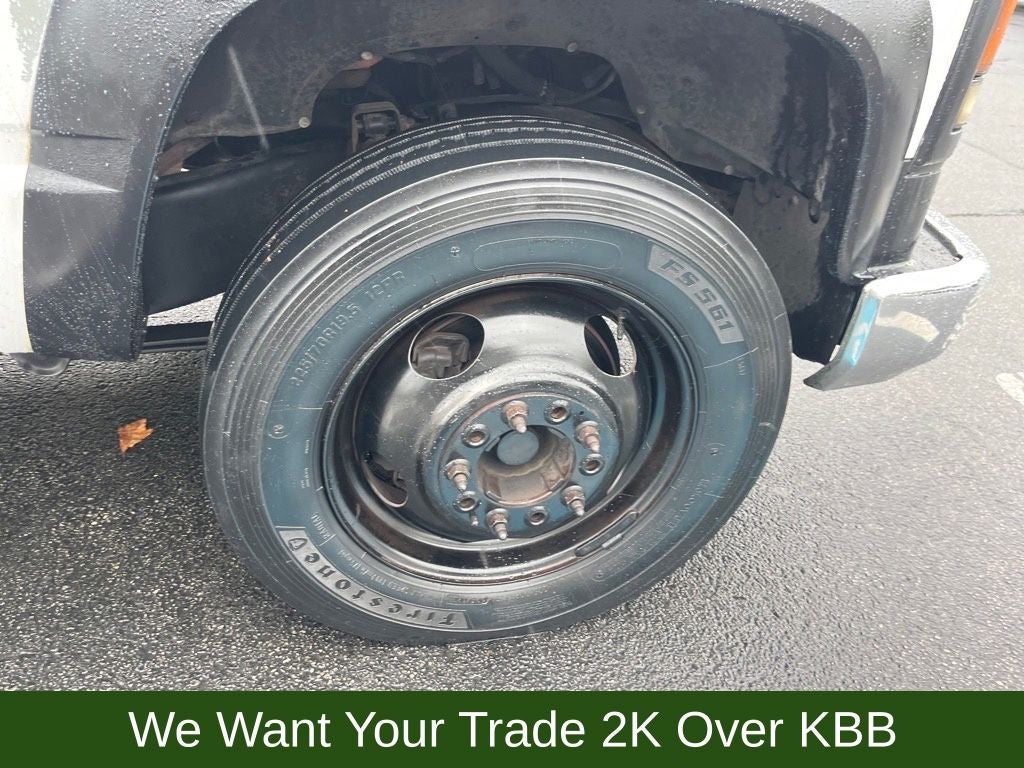

• (2) 225/70R19.5F SBR BSW highway front tires

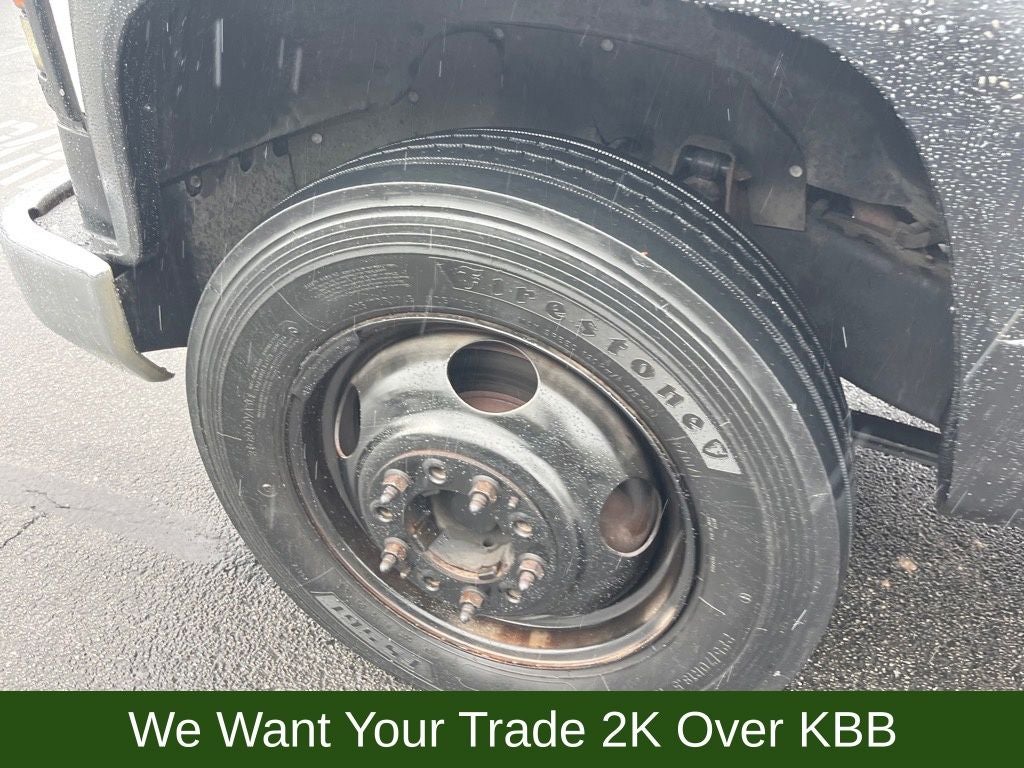

• (4) 225/70R19.5F SBR BSW highway rear tires
• (6) 19.5" x 6" wheels gray painted steel wheels
• Pwr steering
• Pwr 4-wheel disc brakes
• Four-wheel anti-lock brake system
• Dual fuel tanks w/electronic fuel transfer to keep both tanks at equal level (40 gallon total capacity)
• Single, two-sided key

• Solid exterior paint
• Chromed front bumper
• Front wheel opening flares

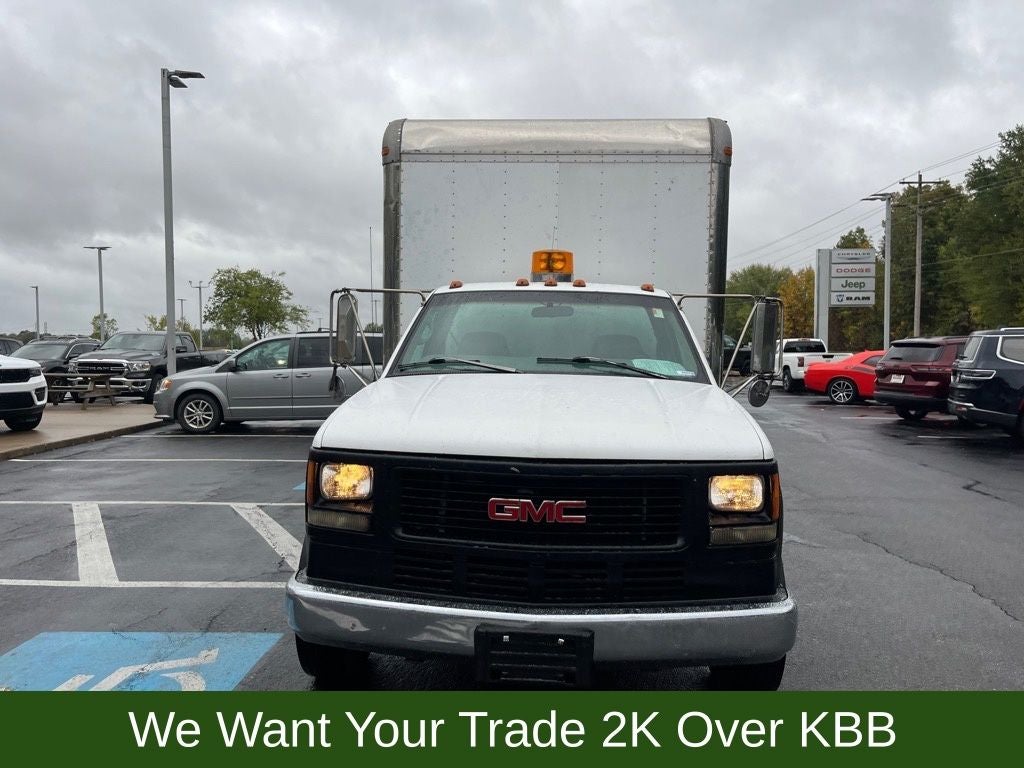

• Molded grille painted light argent w/dark argent air intake areas
• Sealed beam halogen headlamps
• Roof marker lamps
• Daytime running lamps
• Dual black below-eye-line exterior 9" x 6.5" mirrors w/adjustable heads
• Solar-Ray tinted glass on all windows
• Intermittent windshield wiper system
• Insulation under dash & floor covering

• 3-passenger vinyl trim bench seat w/folding backrest
• Scotchgard Fabric Protector on cloth trim/carpeting
• Color-keyed rubber floor covering
• Simulated leather steering wheel
• Passlock theft deterrent security system
• Lights-on warning tone
• Heater/defogger w/side window defoggers

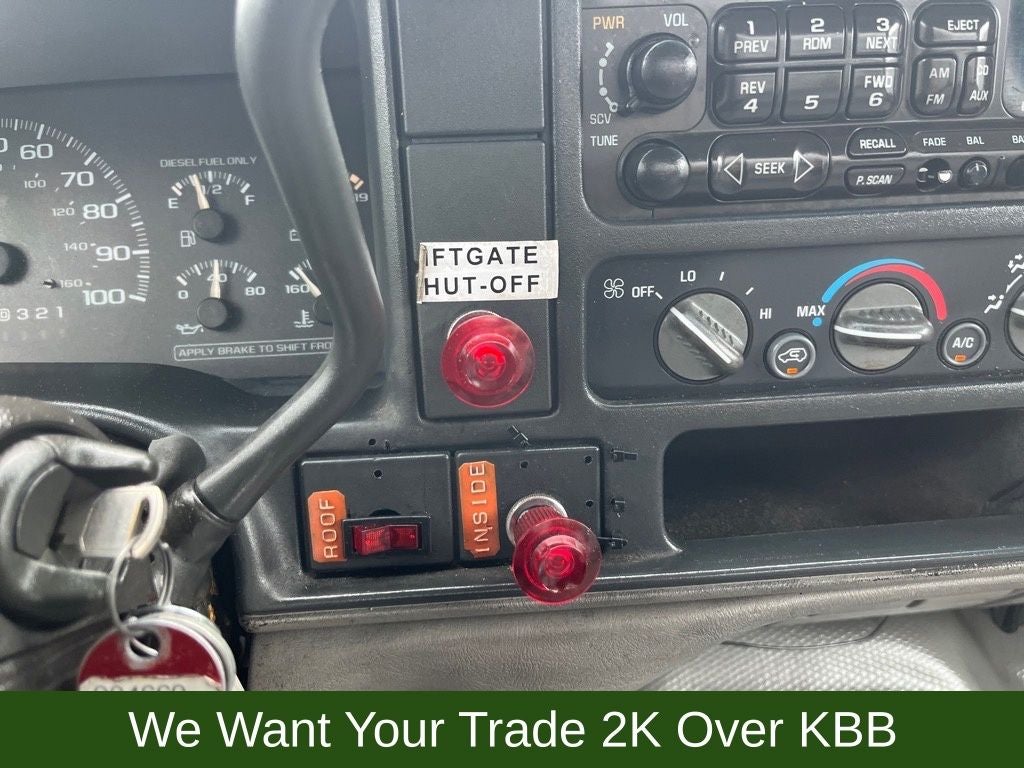

• ETR AM/FM stereo-inc: seek forward/reverse, digital clock, 4 speakers

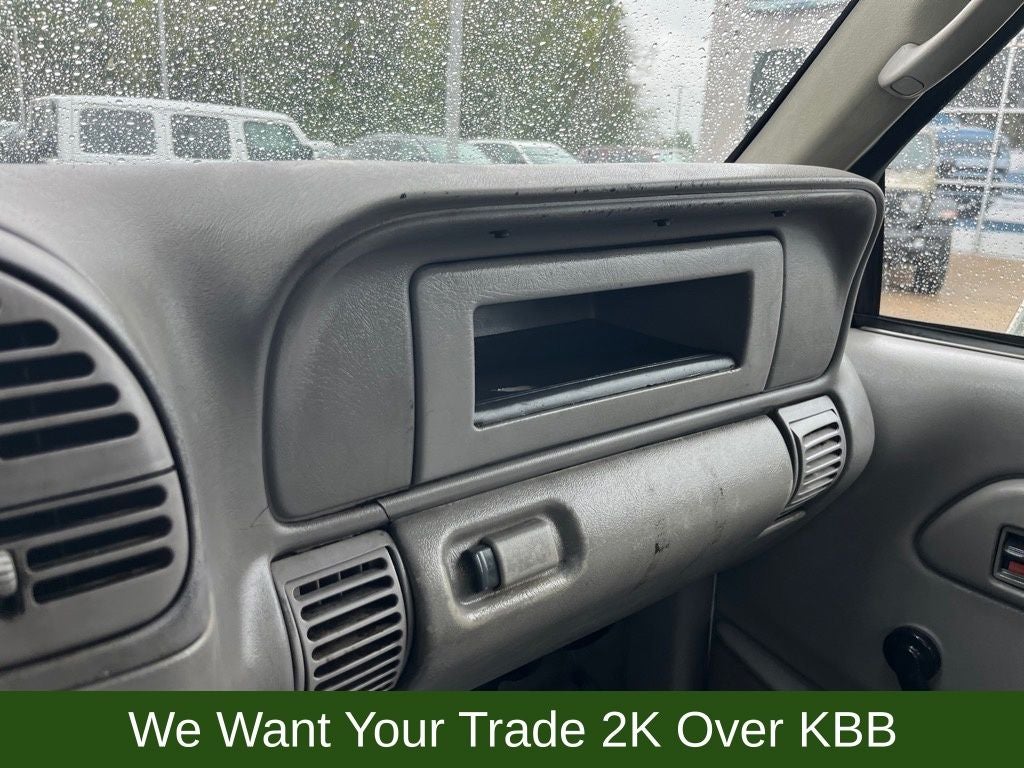

• Passenger-side instrument panel storage bin
• Dual instrument panel cupholders
• Cigarette lighter on instrument panel
• Dual dash-mounted power outlets

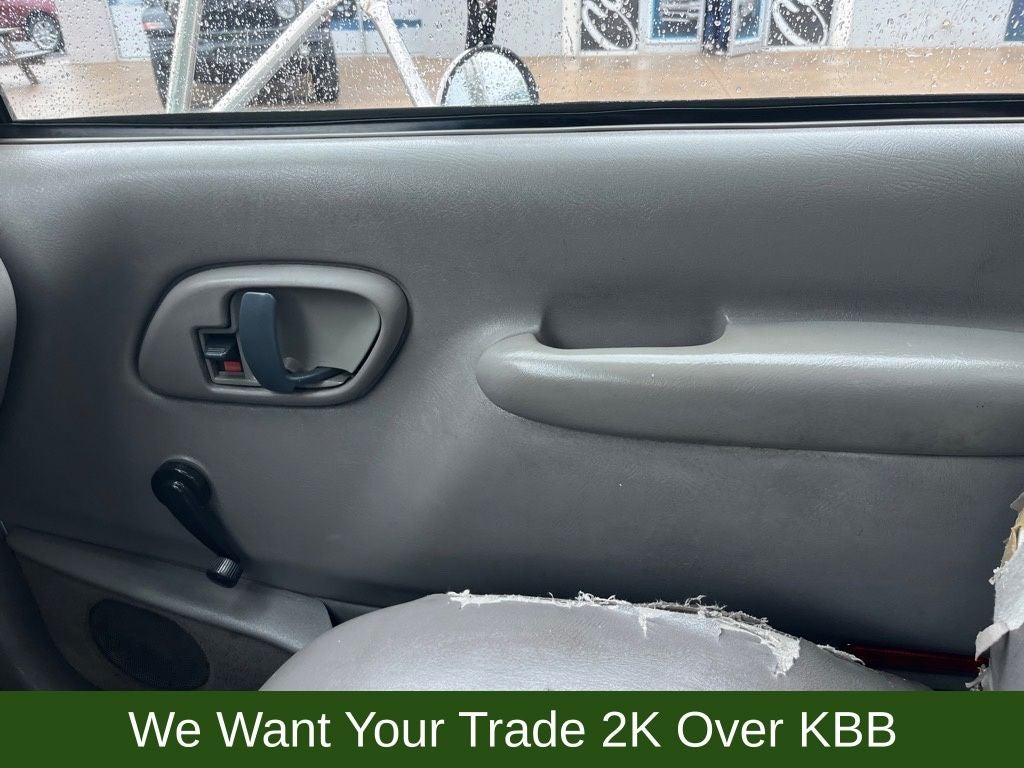

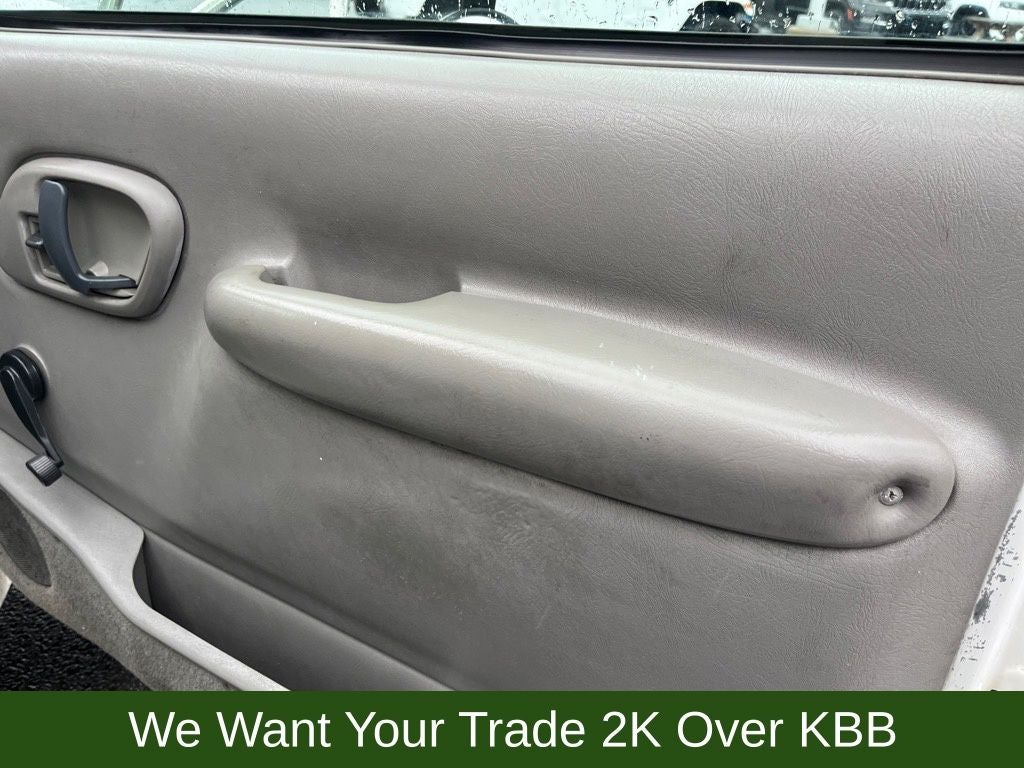

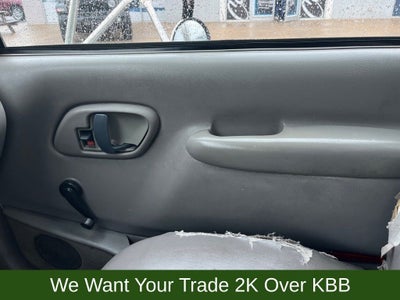

• Molded plastic door trim panels w/dual integral armrests/map pockets
• Color-keyed cloth headliner w/matching retainer moldings
• Dual color-keyed padded cloth sunshades w/LH storage strap/RH vanity mirror
• Passenger assist handles
• Lighting-inc: dome, reading, courtesy, ashtray, glove-box, illuminated entry feature, underhood lamp
• Dual coat hooks

• Four-wheel anti-lock brake system
• Manual lap/shoulder safety belts, outboard seat positions
• Outboard shoulder belt height adjusters
• Manual lap safety belt, center seat position
• Daytime running lamps
• Side guard door beams
• Dual low-high note horn

MARKETING OPTION PKG 1

• SL Decor

SL DECOR

• base vehicle only

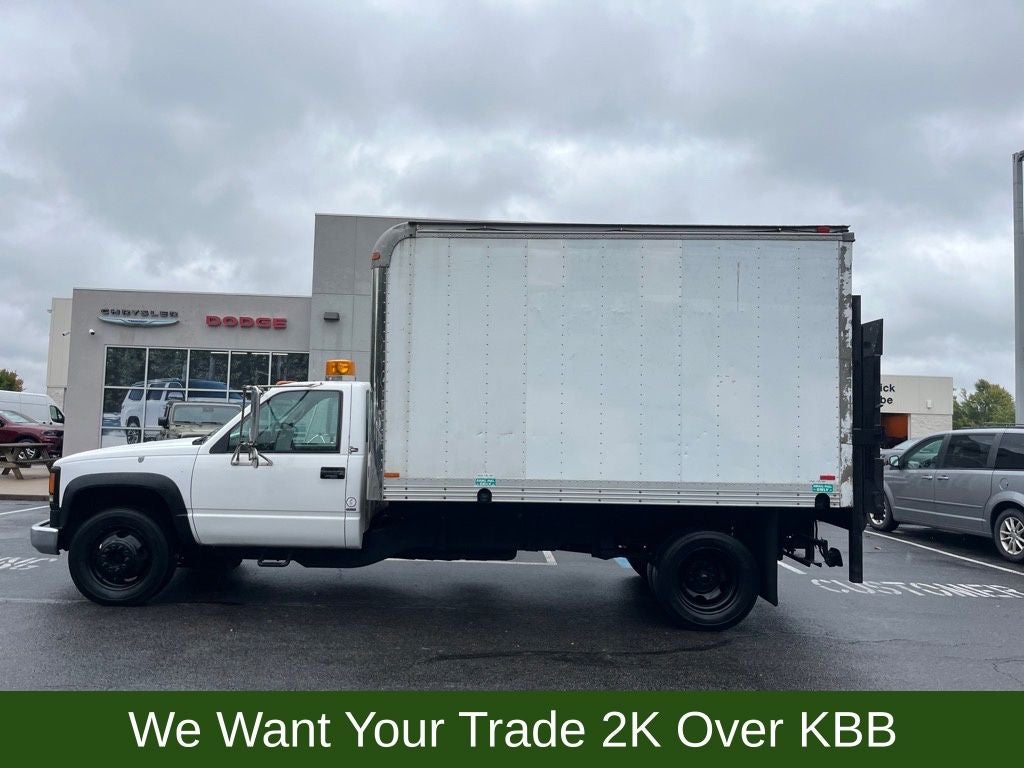

CHASSIS-CAB BODY

• (STD)

6.5L (395) HD V8 TURBO DIESEL ENGINE

• dual 600 CCA batteries
• HD radiator
• extra sound insulation
• block heater
• glow plugs
• two-stage fuel filter w/integral fuel heater/water separator w/instrument panel warning light
• boost gauge

HD 4-SPEED ELECTRONICALLY-CONTROLLED AUTOMATIC TRANSMISSION W/OD

• aux trans oil cooler

225/70R19.5F HIGHWAY SBR BSW SPARE TIRE

• *D & H tax inc*

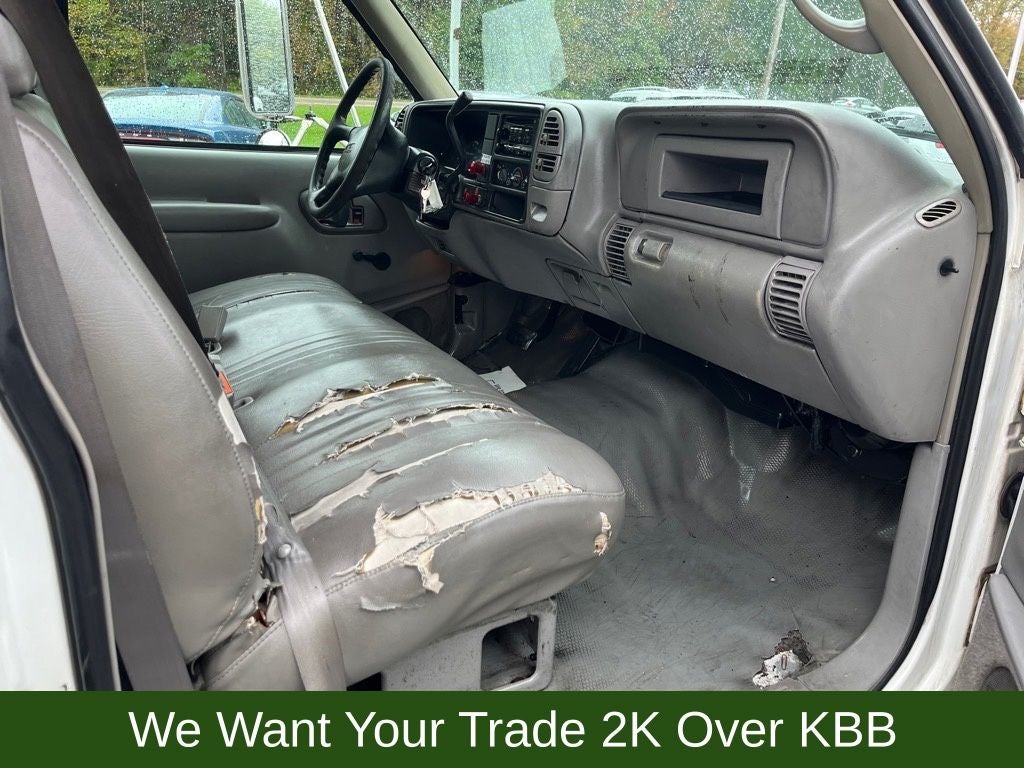

FRONT BENCH SEAT

• (STD) (w/YE9 Decor & __D Seat Trim center fold-down storage armrest
• pwr driver lumbar
• storage pockets behind seat)

15,000# GVWR

• (5000 front/11
• 000 rear)
• springs (5000 front/11
• 000 rear)
• axles (5000 front/11
• 000 rear) (STD)

DUAL STAINLESS-STEEL LARGE SENIOR WEST COAST TYPE 7" x 16" EXTERIOR MIRRORS

• **shipped loose for dealer installation**

225/70R19.5F HIGHWAY SBR BSW FRONT TIRES

• (STD)

225/70R19.5F HIGHWAY SBR BSW REAR TIRES

• (STD)

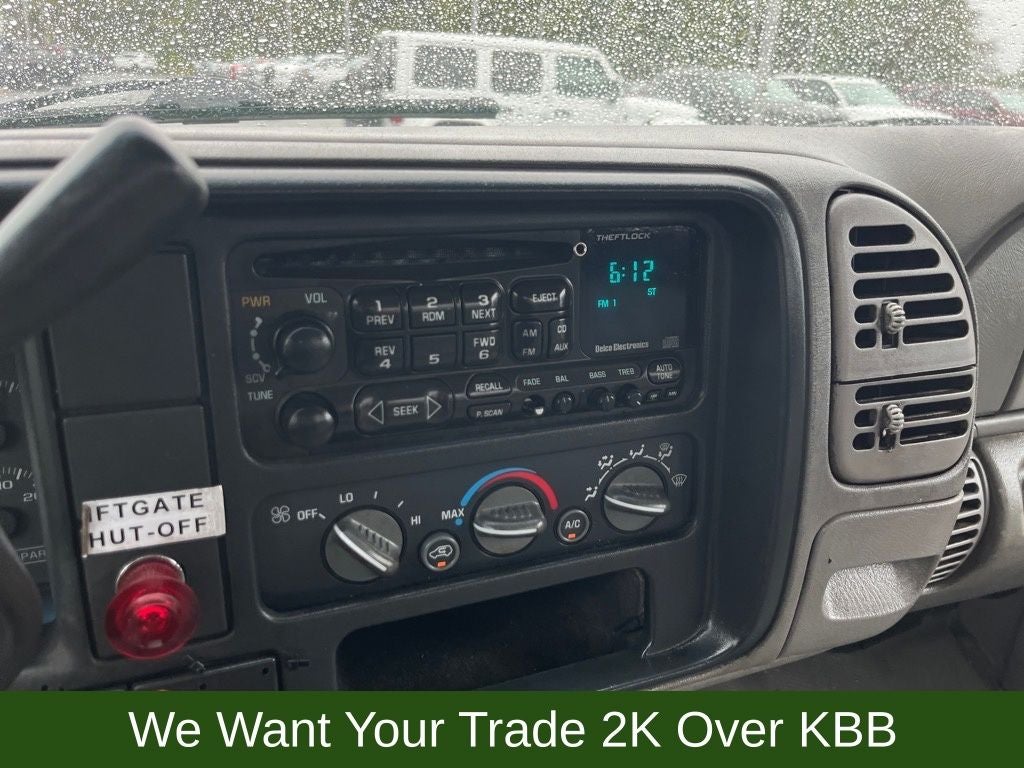

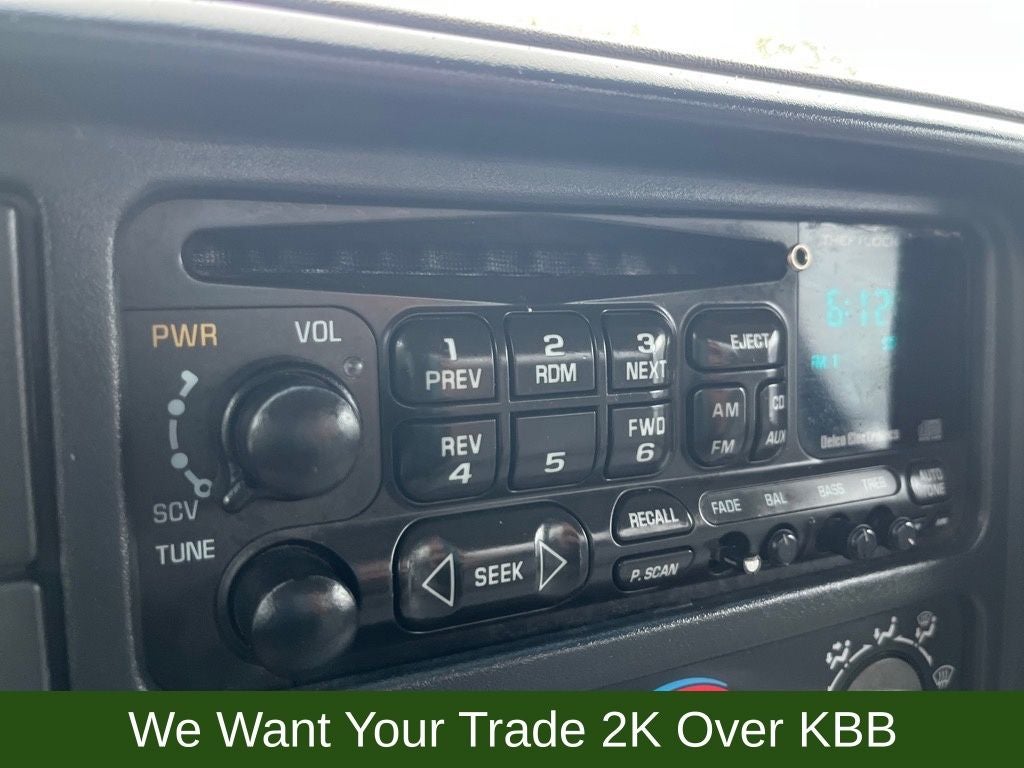

ETR AM/FM STEREO

• seek forward/reverse
• digital clock (STD)

SOLID PAINT

• (STD)

• 15,000 lbs GVWR
• 4.63 Axle Ratio
• California Emissions
• Front 225/70R19.5F Highway BSW Tires
• Front Air Conditioning
• Front Bench Seat
• Front License Plate Bracket
• Gray
• Rear 225/70R19.5F Highway BSW Tires
• Stainless Steel West Coast Type Mirrors
• 4-Speed Automatic Heavy Duty Transmission with Overdrive
• 6.5L V8 Turbo Diesel Engine
• Marketing Option Package 1SA
• Spare 225/70R19.5F Highway BSW Tire
• 12V power outlets 3 12V power outlets
• 4 Speakers
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• Air conditioning Yes
• Alternator Type Alternator
• AM/FM radio
• Antenna Fixed audio antenna
• Auxiliary battery
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery type Heavy-duty lead acid battery
• Beverage holders Front beverage holders
• Body panels Fully galvanized steel body panels
• Brake type Front disc and rear drum brakes
• Bumpers front Chrome front bumper
• Bumpers: chrome
• Cab/Chassis
• Cabback insulator
• Clearance lights Cab clearance lights
• Climate control Manual climate control
• Clock Digital clock
• Compressor Turbo
• Corrosion perforation warranty 72 month/100,000 miles
• Day/Night rearview mirror
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Manual door locks
• Door mirror style Stainless steel door mirrors
• Door mirror type Standard style side mirrors
• Drive type Rear-wheel drive
• Driver door bin
• Driver seat direction Driver seat with 2-way directional controls
• Dual rear wheels
• Emissions California emissions
• Engine 6.5L V-8 turbo, diesel, engine with 195HP
• Engine compartment light
• Engine cooler Engine oil cooler
• Engine Cylinders V8
• Engine Location Front mounted engine
• Engine/electric motor temperature gauge
• First-row windows Manual first-row windows
• Floor coverage Full floor coverage
• Floor covering Full vinyl floor covering
• Folding door mirrors Manual folding door mirrors
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height adjustable front seat head restraints
• Front reading lights
• Front seat type Bench front seat
• Front seat upholstery Vinyl front seat upholstery
• Front seatback upholstery Vinyl front seatback upholstery
• Fuel Type Diesel
• Gearshifter material Urethane gear shifter material
• Glove box Illuminated glove box
• Grille style Black grille
• Headlight type Sealed beam headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Height adjustable seatbelts Front height adjustable seatbelts
• Ignition Compression ignition system
• Illuminated glove box
• Immobilizer

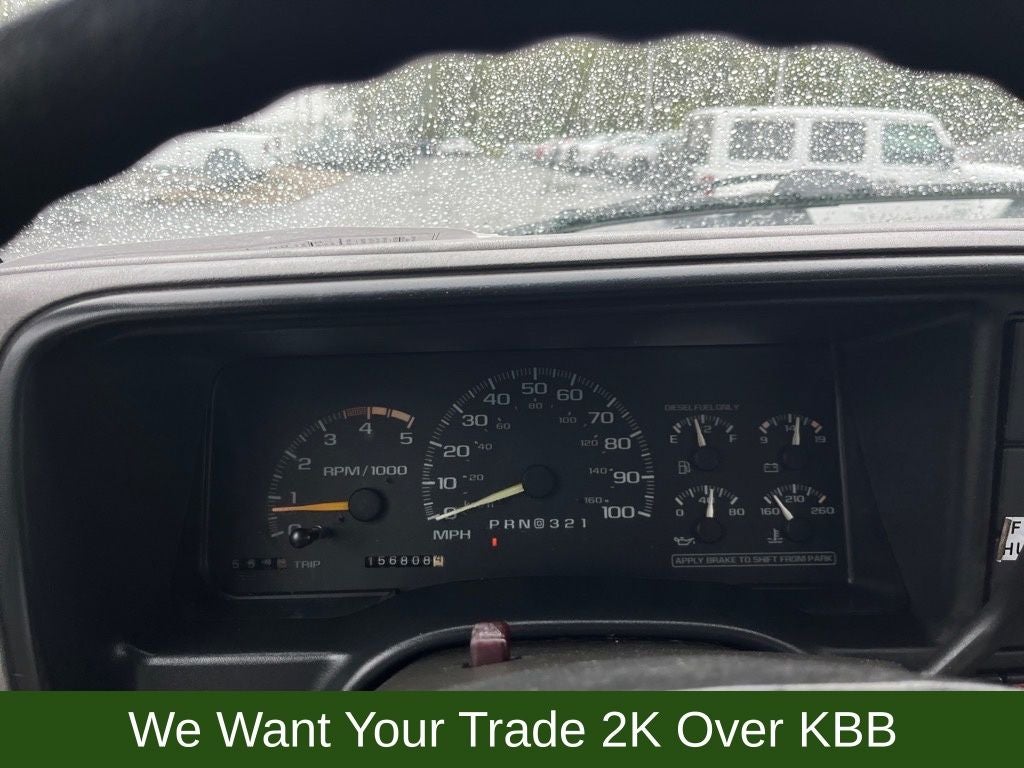

• Instrumentation display Analog instrumentation display
• Key in vehicle warning
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Low level warnings Low level warning for coolant
• Manual driver seat controls Driver seat manual fore/aft control
• Manual passenger seat controls Passenger seat manual fore/aft control
• Number of doors 2 doors
• Oil pressure gauge
• Overdrive transmission
• Passenger door bin
• Passenger seat direction Front passenger seat with 2-way directional controls
• Passenger vanity mirror
• Power steering
• Powertrain warranty 36 month/36,000 miles
• Radiator Heavy-duty radiator
• Radio AM/FM
• Rear Springs Regular grade rear springs
• Rear window trim Black rear window trim
• Rear windshield Fixed rear windshield
• Roadside warranty 36 month/36,000 miles
• Running lights Daytime running lights
• Seating capacity 3
• Seek scan
• Shock absorbers Gas-pressurized shock absorbers
• SL Decor Package
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Spare tire mounted underneath the vehicle
• Speakers number 4 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Sport steering wheel
• Springs front Front leaf springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Suspension ride type front Rigid axle front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Tachometer
• Tailpipe Stainless steel single exhaust
• Tinted windows Light tinted windows
• Tires LT225/70SR19.5 highway BSW front and rear tires
• Transmission 4-speed automatic
• Transmission electronic control
• Transmission oil cooler
• Transmission Type Automatic
• Trip odometer
• Variably intermittent wipers
• Ventilated brakes Front ventilated disc brakes
• Vinyl Seat Trim
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Wheel covers Wheel hub covers
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 600
• Maximum Alternator Capacity (amps): 100
• Maximum Alternator Watts: 1200
• Cooling System
• Total Cooling System Capacity (qts): 23.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 11,000
• Curb Weight - Front (lbs): 3783
• Curb Weight - Rear (lbs): 2603
• Gross Vehicle Weight Rating Cap (lbs): 15,000
• Gross Combined Wt Rating (lbs): 17,000
• Gross Combined Wt Rating (lbs): 19,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Suspension
• Suspension Type - Front: Tapered Leaf Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 5000
• Spring Capacity - Rear (lbs): 11,000
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 11,000
• Axle Ratio (:1) - Rear: 4.63
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.90 x 1.43
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.43
• Tires
• Front Tire Order Code: XTN
• Rear Tire Order Code: YTN
• Spare Tire Order Code: ZTN
• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Spare Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 2595
• Rear Tire Capacity (lbs): 2855
• Spare Tire Capacity (lbs): 2855
• Revolutions/Mile @ 45 mph - Front: 645
• Revolutions/Mile @ 45 mph - Rear: 645
• Revolutions/Mile @ 45 mph - Spare: 645
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Spare Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 18.6
• Steering Ratio (:1), At Lock: 17.8
• Turning Diameter - Curb to Curb (ft): 59.9
• Turning Diameter - Wall to Wall (ft): 61.8
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22
• Aux Fuel Tank Capacity, Approx (gal): 18
• Fuel Tank Location: Inboard LH Frame
• Aux Fuel Tank Location: Behind Rear Axle
• Exterior Dimensions
• Wheelbase (in): 183.5
• Length, Overall w/o rear bumper (in): 272.6
• Width, Max w/o mirrors (in): 85.8
• Height, Overall (in): 77.2
• Overhang, Front (in): 37.9
• Overhang, Rear w/o bumper (in): 51.0
• Front Bumper to Back of Cab (in): 113.6
• Cab to Axle (in): 108.0
• Cab to End of Frame (in): 159.0
• Ground to Top of Frame (in): 31.7
• Frame Width, Rear (in): 34.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.0
• Front Leg Room (in): 41.5
• Front Shoulder Room (in): 65.0
• Front Hip Room (in): 60.1
• Summary
• Vehicle Name: GMC Sierra 3500 HD
• Body Style: Reg Cab 183.5" Wheelbase
• Body Code: ZW9
